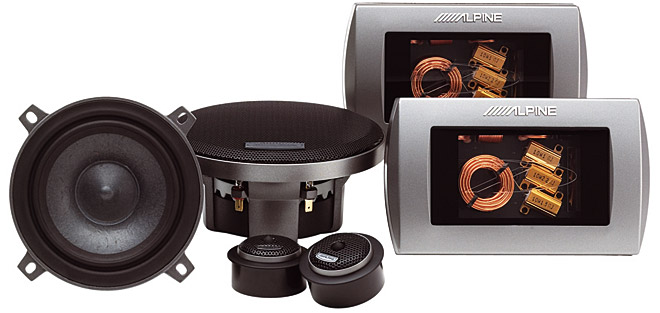

Specifications:
- Power Features
- Peak Power 160W
- RMS Power 40W
- Frequency Response: 45Hz - 60kHz
- Woofer Features
- Wood Fiber Cone & Phase Integrated Dust Cap
- Non-Resonant Suspension Coupling (NRSC) with Reinforced Edge
- Low Resonance Multi-Roll Surround (LRMS)
- Braided Low-DCR Tinsel Leads
- Custom Cast Aluminum Frame
- Integrated Spider Landing & Vented Heat Transfer Plate
- FEA Optimized CRC T-Drive Motor Structure
- Airflow Optimized Dual-Flare Pole Vent
- High Quality Synthetic Black Spider
- Single Voice Coil Design, 4-Layer Copper Clad Aluminum (CCA) Wire on Glass Fiber Bobbin
- High Grade Strontium Ferrite Magnet
- Gold Plated Terminals
- Snap Fit Mounting System
- Tweeter Features
- 32mm (1") Ring Radiator Diaphragm with Wave Guide
- 19mm Voice Coil, Copper Clad Aluminum (CCA) Wire on Aluminum Bobbin
- Periphery Venting System into Cast Aluminum Tuned Chamber with Integrated Heatsink
- Low Distortion Motor Structure with High Grade Neodymium Magnets and Copper Shorting Cap
- Twist Lock Installation Ring with Compact Swivel System
- Network Features
- Phase Coherent Design
- Integrated Level/Axis Adjustment
- Tweeter Protection Circuit
- Bi-Amp/Bi-Wire Capable
- 3-Way/Dual Midbass ready
- Ultra-High Grade Passive Components (Metallized Poly Capacitors, Heavy Gauge Air Core Inductors, Low Tolerance Heatsink Resistors, OFC Circuit Board Traces)
- Gold Plated Terminals and Connection Jumpers
- Priced per pair
|
