Specifications:

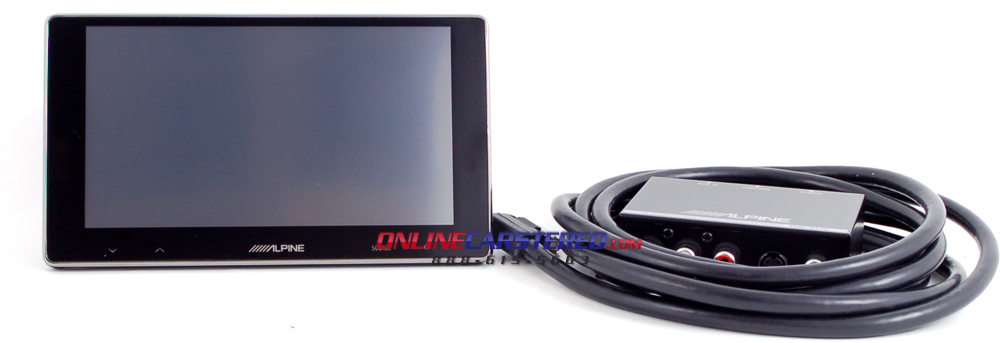

- 6.5" Widescreen Touchscreen Display Monitor
- Perfect add-on for trucks, vans, SUVs, and other vehicles
- Front panel soft-touch controls for volume, source mode, and power on/off functions
- Resolution of 800 x 480 for optimum detailed viewing
- Can be used for front or rear seat video, control panel/display for navigation, and rear camera system
- Includes four 4mm threaded mounting screen holes in universal AMPS pattern compatible with Pro Fit universal mounting solutions
- Built-in speaker on rear panel and internal amplifier with outputs from Auxiliary input and Navigation guidance
- Menu allows user to set monitor to NTSC, PAL, or Auto
- Includes hideaway unit with 8' cable to attach to monitor screen
- Hideaway unit has all input connections plus an 8-pin harness
- Connected to an optional Sirius Backseat TV to allowing user to change channels, select display mode, and turn power to device on or off
- Fully adjustable brightness, color, tint, contrast, sharpness, and visual EQ
- Optional rear-view camera allows user to access flip functions and "camera interrupt" mode
- Built-in IR remote sensor for connecting to an Alpine video source with remote control input lead
- Ambient light sensor along front of panel detects light inside the vehicle to automatically adjust the brightness of the monitor
- Compatible with the NVE-N872A Satellite In-Car Navigation System, PMD-B200 GPS Navigation w/ Bluetooth, and NVE-P1 GPS Navigation Add-on with PMD-DOK2
- Slim monitor with full flat surface design with no bezel or frame
- PAL/NTSC Compatible
- Multi-language OSD (On-Screen Display)
- Left and Right RCA A/V inputs
- Composite video input
- S-Video input
- Proprietary 13-pin input for Navigation system
- Add-on navigation drive for select Alpine DVD receivers such as the Alpine NVE-M300
- Compatible with optional DVD player or changer to control head units audio, play/pause, menu controls, subtitles, shuffle, power on/off, and etc.
- Screen Size: 6-1/2"
- Aspect Ratio: 16:9
- Resolution: WVGA 800 x 480 pixels
- Base color is selectable between blue, green, red, or amber
- Operation System: TFT active matrix
- Number of Picture Elements: 1,152,000 pcs
- Illumination: LED
- Power Requirements: 14.4V DC
- Also found as: TMES370, TME S370
- Dimensions (Monitor): 1-7/16"D x 7"W x 3-15/16"H
- Dimensions (Hideaway): 1-1/8"D x 3-7/16"W x 2-3/8"H
|
