Specifications:
Rated Power
- 200W RMS x 1 @ 4-Ohms
- 400W RMS x 1 @ 2-Ohms
General Features
- 12dB/octave crossover
- 4 Gauge power/ground terminals
- Audiophile grade speaker connections
- MOSFET output stage
- MOSFET power supply

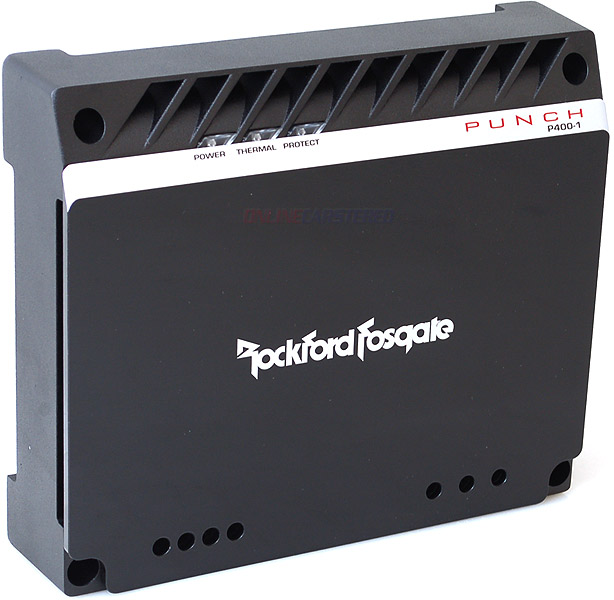

- Top Mounted LED Indicators
- Efficiency (average): 70.5% @ 4-Ohm, 66.5% @ 2-Ohm
- Crossover Controls:
- High-Pass (HP): 50Hz-500Hz 12dB/octave Butterworth
- Low-Pass (LP): 50-500Hz 12dB/octave Butterworth
- Tone Controls:
- Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Punch EQ2 Treble: 0dB to +12dB @ 12kHz
- Function depends upon LP/AP/HP switch position
- Low level Signal Input: 1 RCA pair
- Power Input Connector: Block
- Speaker Output Connector: Screw terminal barrier strip
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional PEQ Remote Punch EQ (overrides built-in Punch EQ2)
- Visual Indicators: Power, Thermal, Protect
- Circuit Topology Class: Class A/B
- Frequency Response: 20Hz to 20kHz +/- 1.0dB
|
