Specifications:

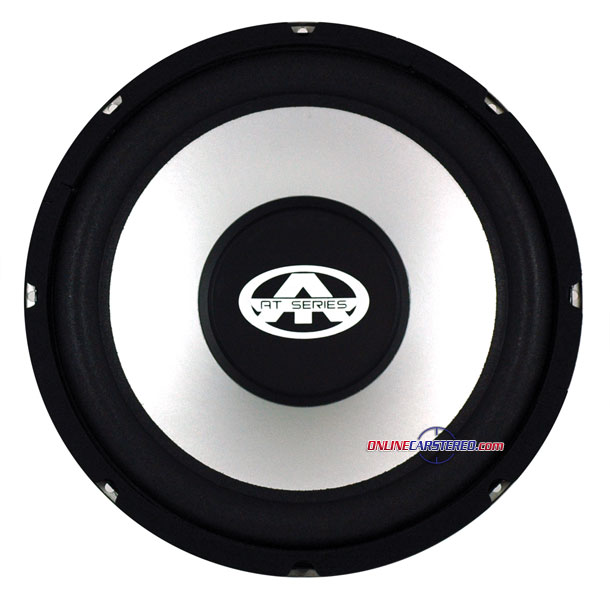

- 12-inch SVC Subwoofer
- High-Energy Magnet
- Paper Cone
- Ultra Rigid Stamped Steel Basket
- Multi-Layer High-Temp Voice Coil
- Front-Plate and Voice-Coil Cooling
- Integrated Spider Tinsel-Lead Design
- Foam Surround
- NomZ: 4.56 Ohm
- Sd: 0.051 Sqm
- Revc: 3.8 Ohm
- BL: 11.179 TxM
- Vas: 145.53 Liters
- Cms: 392.929 uM/N
- Mms: 75.926 Grams
- Fs: 29.14 Hz
- Qms: 4.294
- Qes: 0.423
- Qts: 0.385
- no: 0.824%
- SPL @ 1W Xmax: 91.2 db mm
- Rms: 350
- Maxx: 700
Closed Box Design: (Sealed)
- Box Volume: 2.0
- Qtc: 0.711
- F3: 55
Vented Box Designs: (Round Port)
- Box Volume: 2.0
- Fb: 37
- Port Size (Inside Diameter): 4
- Port Length: 10.5
- F3: 43
|
