Specifications:

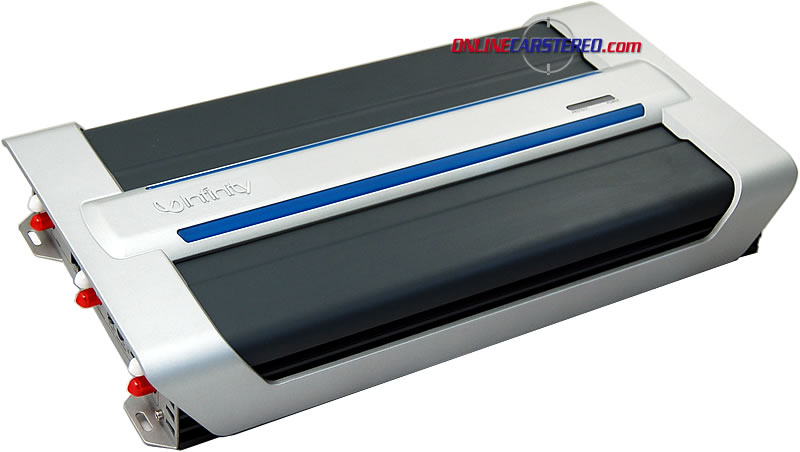

- 5-channel car amplifier
- RMS Power @ 4 ohms: 50 Watts x 4 + 150 watts x 1
- RMS Power @ 2 ohms: 60 watts x 4 + 300 watts x 1
- RMS Power @ 4 ohms in 3-channel mode: 120 watts x 2 + 150 watts x 1
- CEA-2006 compliant
- Variable high- and low-pass filters (32-320 Hz, 12 dB/octave)
- Variable bass boost (0-6 dB at 50 Hz)
- Class AB 4-channel amp with Class D mono sub channel
- MOSFET power supply
- Preamp-level inputs and outputs
- Fuse rating: 40A x 2
- Maximum Input Signal: 6V
- Maximum Sensitivity: 100mV
- 16-9/16"W x 2-11/16"H x 9"D
|
