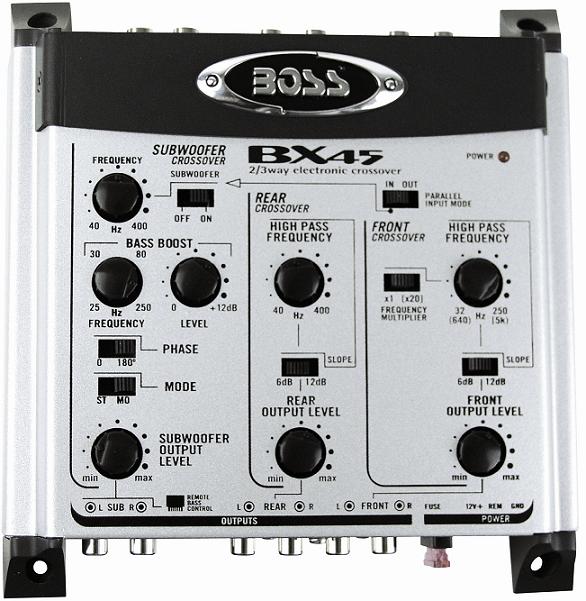

Specifications:
- Inputs: front, rear and subwoofer
- Outputs: front, rear and subwoofer
- Frequency multiplier: x1 or x20
- Selectable crossover frequencies
- Low pass: 32Hz–250Hz
- High pass: 40Hz–400Hz
- Variable bass boost, 0 – +12dB
- Bass boost frequency selector: 25–250Hz
- Selectable crossover slope: 6 dB/octave or 12 dB/octave
- Parallel input switch (feeding Multiple channels from one input)
- Phase shift, stereo/mono
- Signal-to-noise ratio: >110dB
- Remote subwoofer level control
- Lowpass input selector: Direct or front/rear mix
- Remote on/off power control
- LED power indicator
- Subwoofer phase switch
- Dimensions (W x L x H): 7-1/8” x 5-3/4” x 1-1/2”
|
